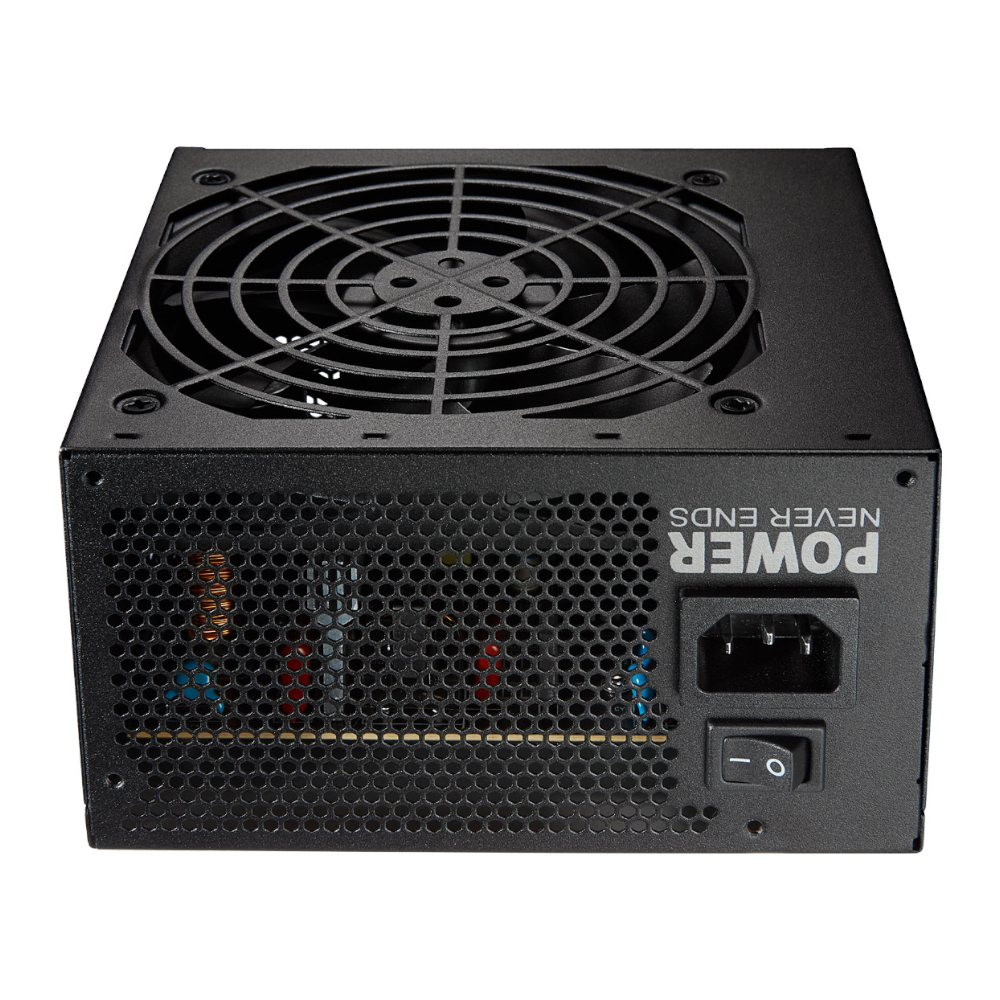

The FSP HV PRO 650W ATX Non-modular Power Supply offers reliable performance and essential features for powering modern PC builds. Designed to meet ATX12 v2.52 & EPS12 v2.92 standards, this power supply ensures stable and efficient operation, achieving 85% efficiency at typical loads under 230V EU conditions.

Equipped with Active PFC (Power Factor Correction) with a rating of ≥0.9, the HV PRO provides clean and efficient power delivery. Its +12V Single-Rail Design and DC-to-DC Module for +5V and +3.3V voltages ensure consistent and reliable performance for demanding hardware components.

The 120mm silent fan guarantees efficient cooling while maintaining low noise levels, making it ideal for quiet builds. Complete with OCP (Overcurrent), OVP (Overvoltage), OPP (Overpower), and SCP (Short Circuit) protections, the HV PRO ensures the safety of your system during operation.

FEATURES:

• Complies with ATX12 v2.52 & EPS12 v2.92
• Efficiency 85% at typical Load
• Active PFC ≧ 0.9
• Hold up time > 17ms at 80% Load
• +12V Single-Rail Design
• +5V &3.3V DC to DC Module Design
• 120mm Silent & long life Fan
• Complete Protections: OCP/OVP/OPP/SCP

SPECIFICATIONS:

• Rated Output Power: 650W
• Form Factor: ATX
• 80 PLUS Certification: 230V EU Standard
• Input Voltage: 200-240V
• Input Current: 5A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: ≥85% at typical load
• Fan Type: Sleeve Fan, 120mm
• Protection: OCP, OVP, OPP, SCP
• Product Dimensions: 15 x 14 x 8.6 cm
• DC Output/Max Output Current/Max Combined Power:
• +3.3V/20A/100W
• +5V/20A/100W
• +12V/54.1A/649.2W
• -12V/0.3A/3.6W
• +5Vsb/2.5A/12.5W
• Connectors:
• MB 20+4 x1
• 4+4 PIN x2
• PCI-E 6+2 x2
• SATA x4
• Molex (PERIPHERAL) x2
• Floppy x1

WHAT’S IN THE BOX:

• FSP HV PRO 650W ATX Non-modular Power Supply – Black x1
